Products
Full HD Vehicle CCTV Products
Vidistor
Compact HD Series
Full Hybrid DVR/NVR
Drivers LED
Health Indicator
Provides an instant, simple, visual health diagnostic of your CCTV system
VidiSafe
Compact Pro
Automotive power distribution unit for use with Vidistor Compact DVR
CAM
Switch PoE
WIMS
Client - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
WLAN / 3G / GPS
Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Internal Camera
Ultra-small with built-in IR Lighting
1080p AHD
Dome Camera
DVR Microphone
With Pre-amplifier

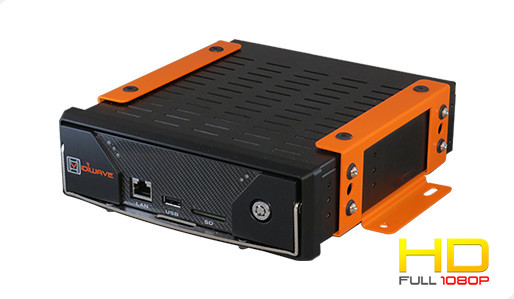

Vidistor Compact-HD
Full Hybrid Mobile DVR/NVR with GPS Tracking
The Ultra Compact single din chassis, makes this product easy to install and dashmountable in most auotmotive applications. Featuring GPS Tracking with Live Video, built shock protection and G-Force Sensing. Up to 25IPS Per camera. This robust well build product is at the forefront of space saving design. Feature packed with embedded linux operating system and up to 2TB of internal storage
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras
- Compact 1DIN size with removable DVR dock design
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade 12-24V PSU
- Built-in support for GPS tracking with video image live and playback
- Built in G-sensors via GPS for embedded playback with video

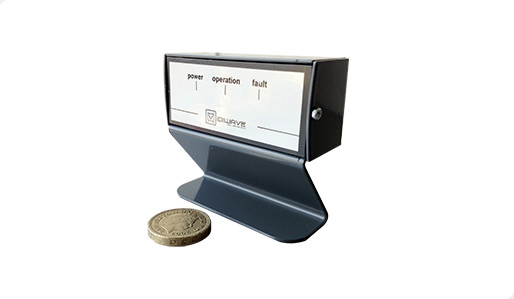

Drivers LED System Health Indicator
The Vidi-Safe LED health indicator is designed to provide a clear, visual confirmation of the complete CCTV system health to
the driver, before he/she takes the vehicle into service.
It is a low-cost alternative to our automated remote vehicle diagnostics package using Vidiwave’s WIMS (Wireless Integrated
Management System) via 3G or WLAN.
This simple compact module allows the driver to have complete peace of mind that the vehicle CCTV is fully operational, providing
protection to staff and passengers throughout the day (and night).
Should an error occur, a fault light will light to alert the driver that the system needs an engineer to investigate the fault log of
the NVR and investigate to repair the system. The log will accurately report the fault in detail to facilitate a quick fix and return
to full operation.
Key Features
- Provides an Instant, simple visual health diagnostics
- Reports the health of all the complete CCTV system
- Checks CCTV systems - Cameras / HDD's / NVR health and DC Power.
- Compact Design - Dashboard and A-pillar mountable
- Rugged construction

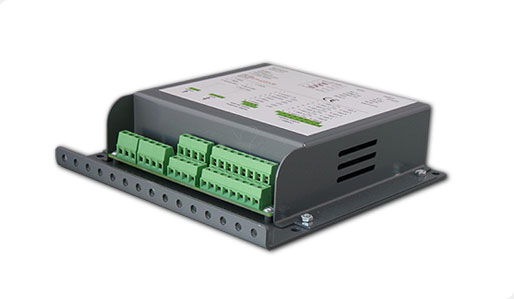

VidiSafe Compact Pro
Automotive power distribution unit for use with Vidistor Compact DVR
This unique technology features permanent electrical spike monitoring, positive and negative earth fault protection. This product powers and protects CCTV Camera, WLAN, 3G Modules & CCTV Monitors. This appliance is also EN-55022-06-A & FCC Part 15-B compliant
Key Features
- Wide Range PSU/PDU protection for 12VDC and 24VDC vehicles
- Permanent spike monitoring technology
- Positive and Negative Earth fault protection
- Thermal fuse, self-healing technology
- Full reverse polarity protection
- Easy-wire installation system
- 12VDC 7.5 Amp output for ancillary devices
- Powers, protects and isolates CCTV cameras
- Powers, protects and isolates WLAN / 3G modules
- Powers, protects and isolates CCTV monitors
- EN-55022-06-A & FCC Part 15-B compliant
CAM Switch PoE
Key Features
- 802.3af POE / 802.3at POE Plus compatible outputs
- Converts a wide input voltage range to POE levels
- Up to 80 watt power budget
- Auto-configuring 10/100 Ethernet switch
- 4+1 and 8+2 channel models
- Rugged enclosure with adjustable mounting brackets
WIMS Client Module - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
Key Features
- Zero Config
- Ultra Secure P2P VPN Technology protects 3G / CDMA / WLAN and LAN to (AES-256) Mil-Spec standards
- Built in Embeded Linux OS for robustness and reliability
- 4GB Solid state compact flash memory
- Supports fixed IP multi-port addressing via DHCP sim cards
- PUSH Diagnostics / Alerts and Exception Reporting direct to your Maintenance Provider
- Embedded Linux Remote Agent syncs information to a Headend Server to give instant Fault Visability and Reporting via 3G and WLAN
- Supports Full Video Management including Playback / Preview and Backup via GPRS / 3G and WLAN
- Integrated Video Backup to a Secure Web-Based Video Vault with Video Sharing Feature for secure CCTV Evidence Distribution
WLAN / 3G / GPS Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Key Features
- Single antenna provides cellular / WLAN + GPS for tracking
- IP67 rated
- High impact ABS plastic for long-life / durability
- Low profile - To reduce gauge increase considerations
- Vehicle wash proof
- Fully isolated from chasis earth faults
- RoHS Compliant

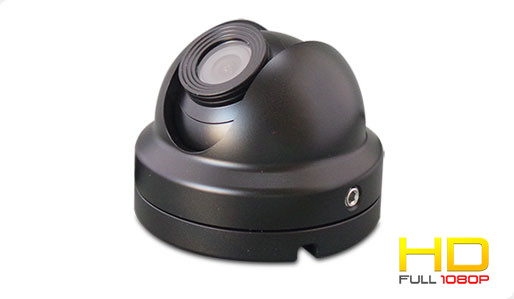

1080p AHD Dome Camera
Key Features
- 1/3” 2.1 Megapixel Sony HD Image Sensor
- Zero motion blur on moving objects
- 2DNR / DNR Level (0~100) Adjustment / SMART NR
- Ultra low light 0.02Lux (Sens-up x30)
- 1080P and 720P HD resolutions available
- IP66 snap lock quick fit connector system
- Vandal resistant design
- Waterproof IP66 housing

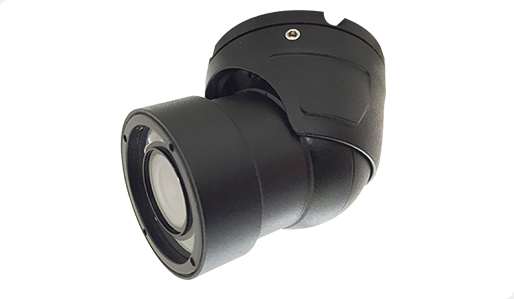

Internal Camera
Ultra-small with built in IR Lighting

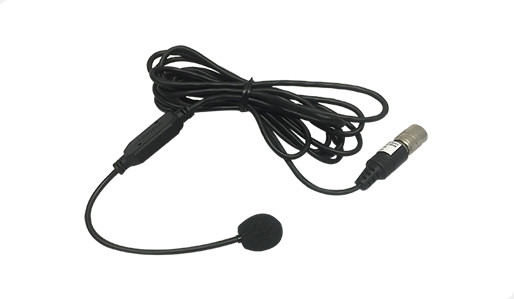

DVR Microphone
With pre-amplifier
Key Features
- Compact size – Ideal for discrete / non intrusive installation
- Built-in powered Pre-amplifier
- Low-voltage operation
- Pre-wired to utilise existing camera 12VDC power feeds, Ideal for system upgrades
- Adaptive Noise Gate Threshold (to reduce background noise)
- Adaptive Compression Level to Optimise Sound Quality
- Auto limiting feature – Prevents ADC overload
- Adjustable release time
- Low noise and Distortion
- 20kHz Bandwidth (+/- 1 dB)
- Optional IP65 rated version available on request
View all products in this range
